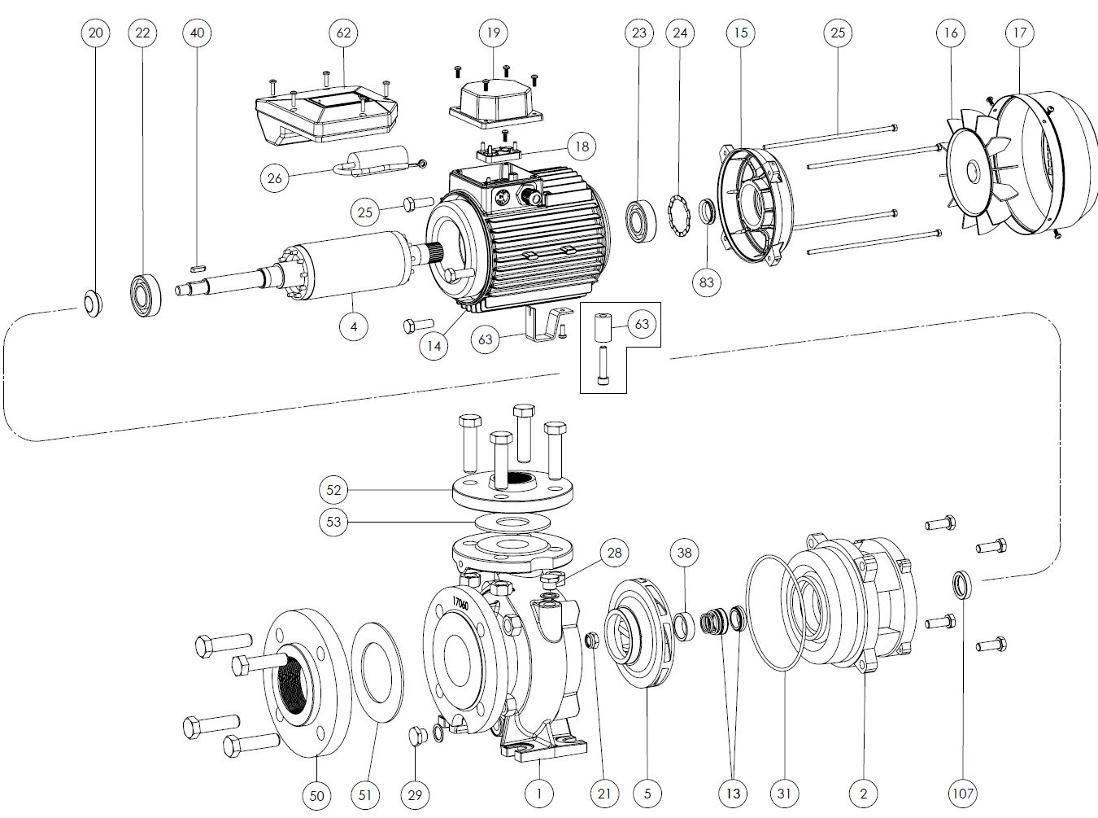

Pos. Part                   - Description Eur    -
1 S70017072 PUMP BODY  CM50-200 429
2 S70046061 BRACKET D.200/MEC160 286
4 S75405304 ALB.+ROT. D.135 H180T CM 20HP IE3 874
5 S70027072A IMPELLER   CM50-200A D.212 20HP-15kW 124
13 M60400014 MECH. SEAL PR/FN 28 VPGF 42
13 M60400015 MECH. SEAL DIN BT PFL 28 BP 26
14 S57900508 CAS+ST.240x135-180T 230/400-50 IE3 2926
15 S70214032 MOTOR COVER MEC160 (D.90) 100
16 M60100011 FAN MEC160 IE3 8P D.39,8 11
17 S71415006 FAN COVER  MEC 160 55
18 M61100006 TERMINAL BLOCK  BAM7 6M 82x52 M6 42
19 M62700040 COPRIMORSETTIERA ALLUMINIO MEC160/180 43
20 M72606001 SPLASH GUARD D.28 16
21 M60513013 IMPELLER STOP NUT M16x1,5 33
22/23 M60300007 BEARING  6309-ZZ C3E EA3S6 58
22/23 M60300006 BEARING  6308-ZZ C3E E EA3S6 42
24 M60603005 ADJUSTING RING 90 A 12
25/47 M75450008 ROD     M 8x325 MEC 160 M 14
28/29 M75147003 PLUG 3/8    BRASS 18
31 M60900012 PUMP BODY OR GASKET 209,15x3,53 12
38 M75118011 MECHANICAL SEAL SPACER D.28 29
40 M61000005 KEY 6x6x25 AISI 316 S.S. 12
50/52 M62200001 FLANGE 2 UNI 2254-67 DN50 PN10-PN16 43
50/52 M62200002 FLANGE 2 1/2 UNI 2254-67 DN65 PN10-PN16 50
51/53 M74628005 SUCTION PIPE GASKET DN65 9
51/53 M74628013 SUCTION PIPE GASKET DN50 12
63 M75403002 FOOT H=13 12
83 M60901000 V-R GASKET VA-40 12
107 M72601002 LIP RING SEAL SC 45x60x7 29

These parts are interchangeable with PENTAX and MARLEY

Spares: Foras:MN50-200A 230/400-50 20HP, Pentax:CM50-200A

Name: Spares: Foras:MN50-200A 230/400-50 20HP, Pentax:CM50-200A
Brand: Foras Pentax

€ 0,00

excl. BTW |

Spare parts 10% discount

Aantal

4 weeks / 4 Wochen / 4 semaines

Spares: Foras:MN50-200A 230/400-50 20HP, Pentax:CM50-200A

Delivery time/ Lieferzeit / Délai de livraison

Productcode

Buy new/ Neu kaufen/ Acheter neuf
