EDY - Diaphragm Pumps

Engineered for versatility, air-operated diaphragm pumps utilize compressed air to safely manage explosive liquids and medium-viscosity fluids. Their adjustable flow control makes them essential for dosing, while their robust design allows for flexible placement, including operation inside full tanks.

APPLICATIONS:

1/1

Data Sheets

Chemical, textile, paper industry

Flammable and explosive liquids

Paint and printing industry

Food industry

Mud transfer and High viscosity fluids transfer

EDY

DIAPHRAGM PUMPS

CONSTRUCTION FEATURES

Capacity:

14-500 l/min

Pressure:

3-7 bar

Operating Temperature:

-20 °C to +150 °C

Air Pressure:

4-8 bar

Pump body:

Cast iron (3200, 4200, 5200, 6200),

Aluminium (1050, 1100, 3100, 4100, 5100, 6100), Polypropylene (2050, 2075, 2100, 2200)

Head:

70 mm

Suction Depth:

6 mm

Solid Handling Capacity:

3-8 mm

Performance Chart

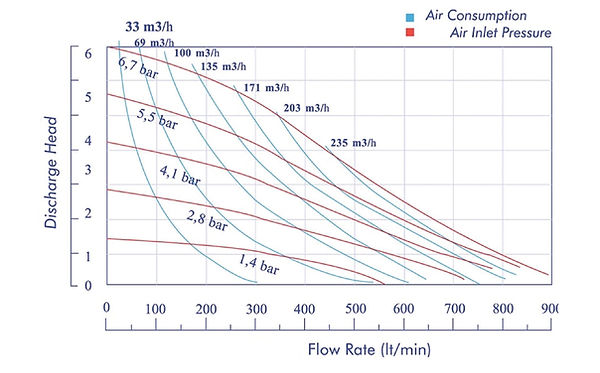

Performance Curves

1/2" - 3/4" Pump

1 1/2" Pump

1" Pump

2" Pump

3" Pump

Size Chart

Metal Pump

Plastic Pump

Part list
