Vacuum Pumps

Select a series

Double Stage Vacuum Pumps

Single Stage Vacuum Pumps

Monoblock Vacuum Pumps

Oil Vacuum Pumps

Double-stage water vacuum pumps are specially designed to provide high efficiency at low pressure in industrial applications. Thanks to their water-based operating principle, they can effectively evacuate various gases and vapors.

Data Sheets

APPLICATIONS:

Double Stage Vacuum Pumps

1/1

Chemical Industry

Vacuum applications in chemical processes.

Food industry

Vacuum packaging and storage.

Laboratory Applications

Creating vacuum environments in experiments and analyses.

Pharmaceutical Production

Providing vacuum in drug manufacturing.

ESV

DOUBLE STAGE VACUUM PUMPS

CONSTRUCTION FEATURES

Flow Rate Range:

200 m³/h - 3500 m³/h

Discharge Pressure:

735 mmHg

Recommended Temperature:

+25 °C

Maximum Inlet/Outlet:

DN50 - DN150

Engine Power:

5.5 kW - 90 kW

Performance Chart

Performance Curves

Size Chart

Part list

Single-stage water vacuum pumps are specially designed to provide high efficiency at low pressure in industrial applications. With their water-based operating principle, they can effectively evacuate various gases and vapors.

APPLICATIONS:

Chemical Industry

Vacuum applications in chemical processes.

Food industry

Vacuum packaging and storage.

Pharmaceutical Production

Providing vacuum in drug manufacturing.

Laboratory Applications:

Creating vacuum environments in experiments and analyses.

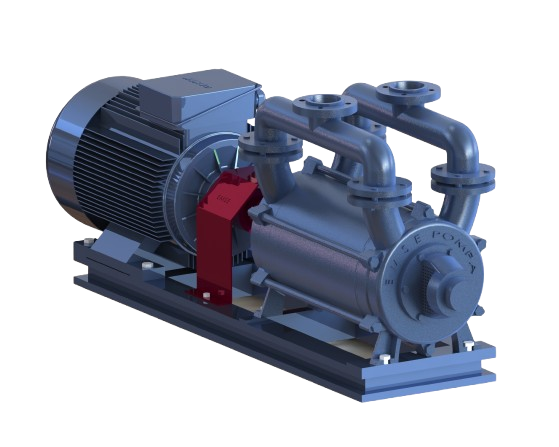

Single Stage Vacuum Pumps

1/1

Data Sheets

ESV

SINGLE STAGE VACUUM PUMPS

CONSTRUCTION FEATURES

Flow Rate Range:

400 m³/h - 3500 m³/h

Discharge Pressure:

700 mmHg

Operating Temperature:

+25 °C

Inlet/Outlet Connection:

DN80 - DN150

Performance Chart

Size Chart

Part list

Monoblock water vacuum pumps are designed to provide high efficiency at low pressure in industrial applications. With their water-based operating principle, they can effectively evacuate various gases and vapors.

Data Sheets

APPLICATIONS:

Monoblock Vacuum Pumps

Monoblock Vacuum Pumps -B series

Monoblock Vacuum Pumps

1/2

Chemical Industry

Vacuum applications in chemical processes.

Food industry

Vacuum packaging and storage.

Pharmaceutical Production

Providing vacuum in drug manufacturing.

Laboratory Applications

Creating vacuum environments in experiments and analyses.

ESV

MONOBLOCK VACUUM PUMPS

CONSTRUCTION FEATURES

Flow Rate Range:

25 m³/h - 100 m³/h

70 m³/h - 350 m³/h (B-series)

Discharge Pressure:

735 mmHg

Operating Temperature:

0 -+20 °C

Inlet/Outlet Connection:

Between DN25 and DN65

Engine Power

0.75 kW - 15 kW

Performance Chart

Performance Curves

Size Chart

The oiled vacuum pumps create vacuum with a stator and a rotor support placed eccentrically within this stator. The gas entering the stator by air suction from the top of the stator is compressed into compartments between the pallets. The gas-oil mixture compressed in the narrowing chamber is thrown into the oil tank, to which it is connected through the stator outlet holes. In this tank, the gas oil mixture is separated with the help of both mechanical effect and filters. As a result, the vacuum-drawn gas is separated from the oil and given to the exhaust line. The separated oil is filtered and the circulation in the system continues.

Data Sheets
