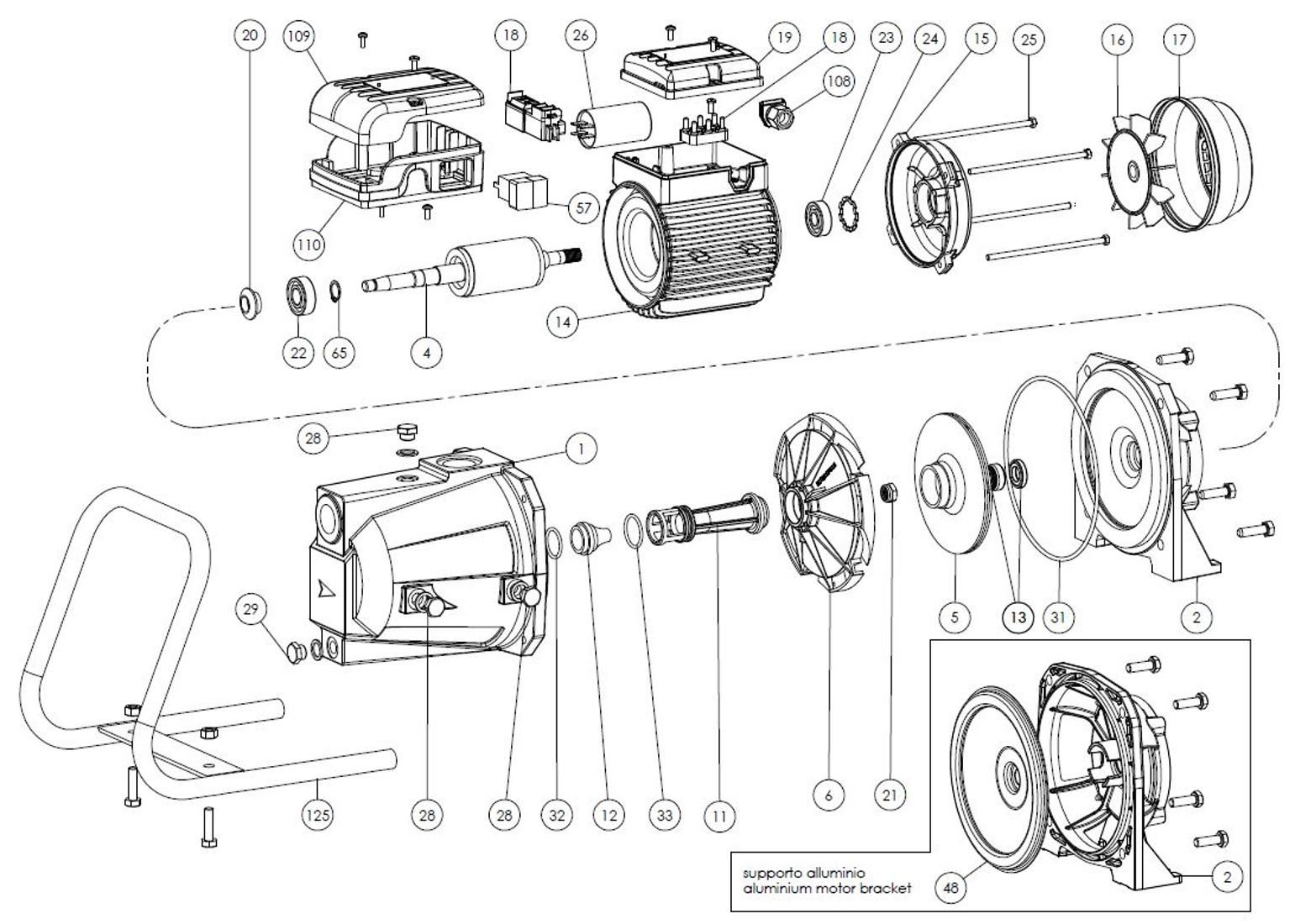

Pos. | Part - | Description | Eur - |
1 | S70017000 | PUMP BODY CAM | 102 |
2 | S70046000 | BRACKET CAM/AP/CM75-100 | 74 |
4 | S75405000B | SHAFT+ROTOR D.55 H80M AP-CAM-INOX-JMC100 | 51 |
5 | M72527002 | NORYL IMPELLER CAM-AP-JMC-INX-JPL100 | 17 |
6 | M72519015 | DIFFUSER CAM/JX/AP75-100 | 27 |
11 | M72521001 | VENTURI TUBE D.13.75 | 16 |
12 | M72521003 | NOZZLE D. 9,5 | 7 |
13 | M60400002 | MECH. SEAL PR/AR 13 BP5FF | 18 |
13 | M60400003 | MECH. SEAL PFC 26x13x5.5 V1P | 11 |
14 | S57900012F | M. CASE+W.110x55-80M 230-50 + TERM B5 | 177 |
15 | S70214001 | MOT. COVER MEC71 | 21 |
16 | M60100016 | FAN MEC71 D.15 | 16 |
17 | M60200021 | FAN COVER MEC71 | 26 |
18 | M61101000 | TERMINAL BOX / CONNECTOR 1 PHASE | 11 |
20 | M72606003 | SPLASH GUARD D.15 | 9 |
22/23 | M60300001 | BEARING 6202-ZZ D NS7SJ | 12 |
24 | M60603001 | ADJUSTING RING 35 B | 11 |
25 | M75450002 | ROD M 5x135 MEC 71 | 11 |
26 | M61400005F | CAPACITOR 20µF 450V + FASTON | 15 |
28/29 | M75147000 | PLUG 1/4 BRASS | 20 |
31 | M60900008 | PUMP BODY OR GASKET 164,7x3,53 | 11 |
32 | M60900001 | NOZZLE O-R GASKET 23,81x2,62 | 11 |
33 | M60900002 | VENTURI TUBE OR GASKET 26,65x2,62 | 11 |
57 | M62400012 | SWITCH (SINGLE PHASE) G.J. | 14 |
65 | M60602000 | LOCK RING D. 15 | 11 |
108 | M60701101 | SHEATH CLAMP | 11 |
109 | M62700039-A | TERMINAL BOX COVER. MEC63-71 | 25 |
110 | M62700038A-A | TERMINAL BOX BASE. MEC71 x GARDEN | 18 |
125 | M41408012 | HANDLE GARDEN (universale) | 37 |
Spares: Foras:JA100 GARDEN 230-50, Pentax:CAM100 GARDEN
€0.00Price
Excluding VAT |
Spare parts
4 weeks / 4 Wochen / 4 semaines
