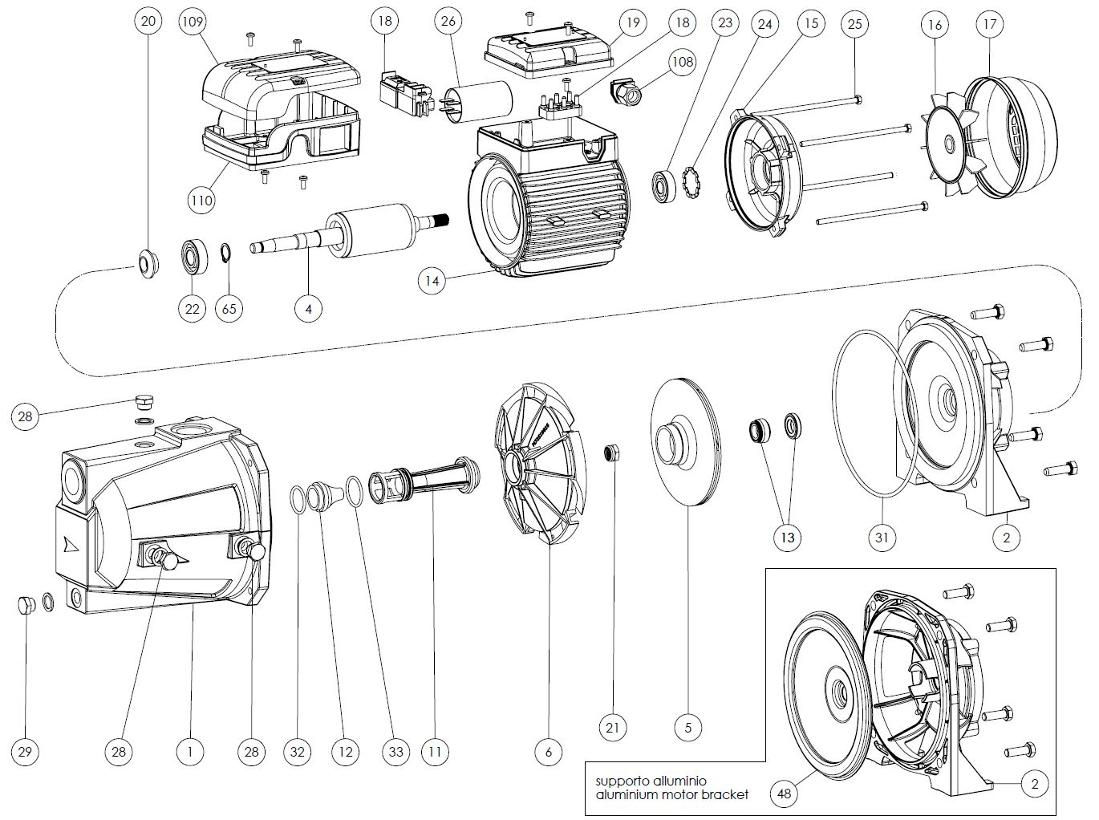

Pos.Part -DescriptionEur -
1S70017000PUMP BODY CAM102
2S70046034BRACKET CAM550-575 (4 TIR.)83
4S75405036BSHAFT+ROTOR D.47 H70M/T CM(T)50-CAM(T)5546
5M72527000RNORYL IMPELLER CAM550-50 D.115 60Hz14
6M72519015DIFFUSER CAM/JX/AP75-10027
11M72521000VENTURI TUBE D.11 CAM16
12M72521002NOZZLE D. 711
13M60400002MECH. SEAL PR/AR 13 BP5FF18
13M60400003MECH. SEAL PFC 26x13x5.5 V1P11
14S57900033FM. CASE+W.90x47-70M 110/220-50 B5128
15S70214014MOT. COVER MEC63 (4 TIR.)16
16M60100000FAN MEC 63 D.1212
17M60200020FAN COVER MEC6319
18M61101000AMORSET./CONNET. xPOMPE 1 FASE BITENSIONE14
20M72606003SPLASH GUARD D.159
22/23M60300000BEARING 6201-ZZ D NS7SJ12
22/23M60300001BEARING 6202-ZZ D NS7SJ12
24M60603000ADJUSTING RING 32 B11
25M75450001ROD M 5x124 MEC 6311
26M61400009FCAPACITOR 40µF 250V + FASTON30
28/29M75147000PLUG 1/4 BRASS20
31M60900008PUMP BODY OR GASKET 164,7x3,5311
32M60900001NOZZLE O-R GASKET 23,81x2,6211
33M60900002VENTURI TUBE OR GASKET 26,65x2,6211
108M60701101SHEATH CLAMP11
109M62700039-ATERMINAL BOX COVER. MEC63-7125
110M62700037-ATERMINAL BOX BASE. MEC6320
These parts are interchangeable with PENTAX and MARLEY

Spares: Foras:JR60 110/220-50

€0.00Price
VAT Included |
  •  4 weeks / 4 Wochen / 4 semaines
