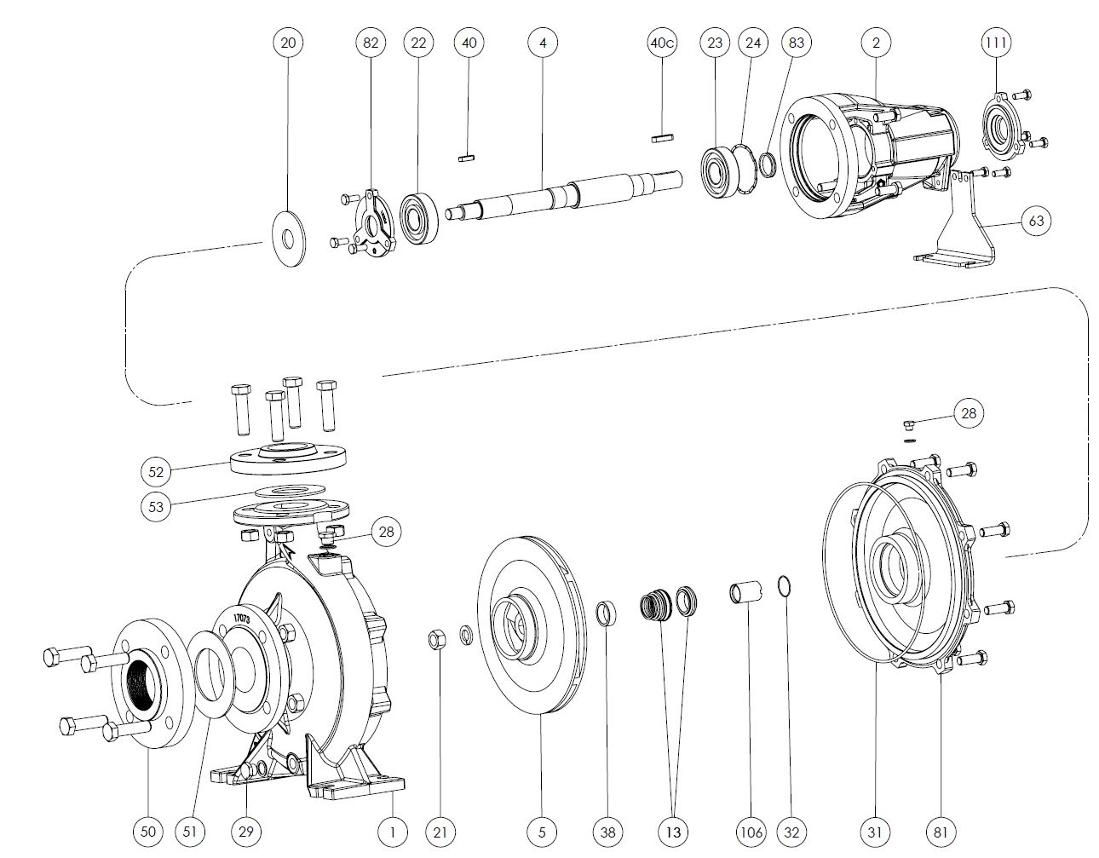

Pos.Part -DescriptionEur -
1S70017060PUMP BODY CM40-125294
2S70046030ABRACKET CA40-50-65/125209
4M40100028PUMP SHAFT CA/MA32-160 40-125139
5S70027060AIMPELLER CM40-125A D.144,5 4HP-3kW95
13M60400012MECH. SEAL PR/FN 20 V1PGG24
13M60400013MECH. SEAL PFL 30.9x20x8 BP15
20M72606001SPLASH GUARD D.2816
21M60513069NUT UNI 7474 M12x1,75 A4 AUTOBLOCCANTE11
22/23M60300008BEARING 6306-ZZ C3 EA324
24M60603007ADJUSTING RING 72 B13
28/29M75147003PLUG 3/8 BRASS18
31M60900061OR GASKET 138,90x3,7515
40/40cM61000007KEY 8x7x35 AISI 316 S.S.12
40M61000002KEY 5x5x20 AISI 316 S.S.12
50/52M62200000FLANGE 1 1/2 UNI 2254-67 DN40 PN10-PN1638
50/52M62200002FLANGE 2 1/2 UNI 2254-67 DN65 PN10-PN1650
51/53M74628005SUCTION PIPE GASKET DN659
51/53M74628006DELIVERY PIPE GASKET DN4011
63M75403035CSTAFFA BRACKET H=52 x CA1
81S70019015ASHIELD CA40-125 T.M.168
82S70013205COPERCHIO CUSCINETTO CA D.3137
83M60901005V-RING VA-3011
These parts are interchangeable with PENTAX and MARLEY

Spares: Foras:MA40-125A 50Hz, Pentax:CA40-125A 50Hz

€0.00Price
VAT Included |
  •  4 weeks / 4 Wochen / 4 semaines
